DIALux and DDScad: Real-Time Data Exchange via IFC

In cooperation with Graphisoft, we have developed a data interface based on IFC that enables real-time information exchange between DDScad and DIALux. Electrical and HVAC planners can now integrate lighting designs into their building models more easily and comfortably, and synchronize changes.

The Open BIM Solution for MEP Engineers

DDScad is specialized software for mechanical, electrical, and plumbing (MEP) engineering, developed by Graphisoft, a company of the Nemetschek Group. The software facilitates the planning, visualization, and documentation of heating, ventilation, and air conditioning systems, as well as sanitary and electrical installations in buildings. Like DIAL with DIALux, the Nemetschek Group pursues a consistent Open BIM approach with its products and promotes open standards and interoperable solutions in the AEC industry.

Real-Time Data Exchange Between DDScad and DIALux

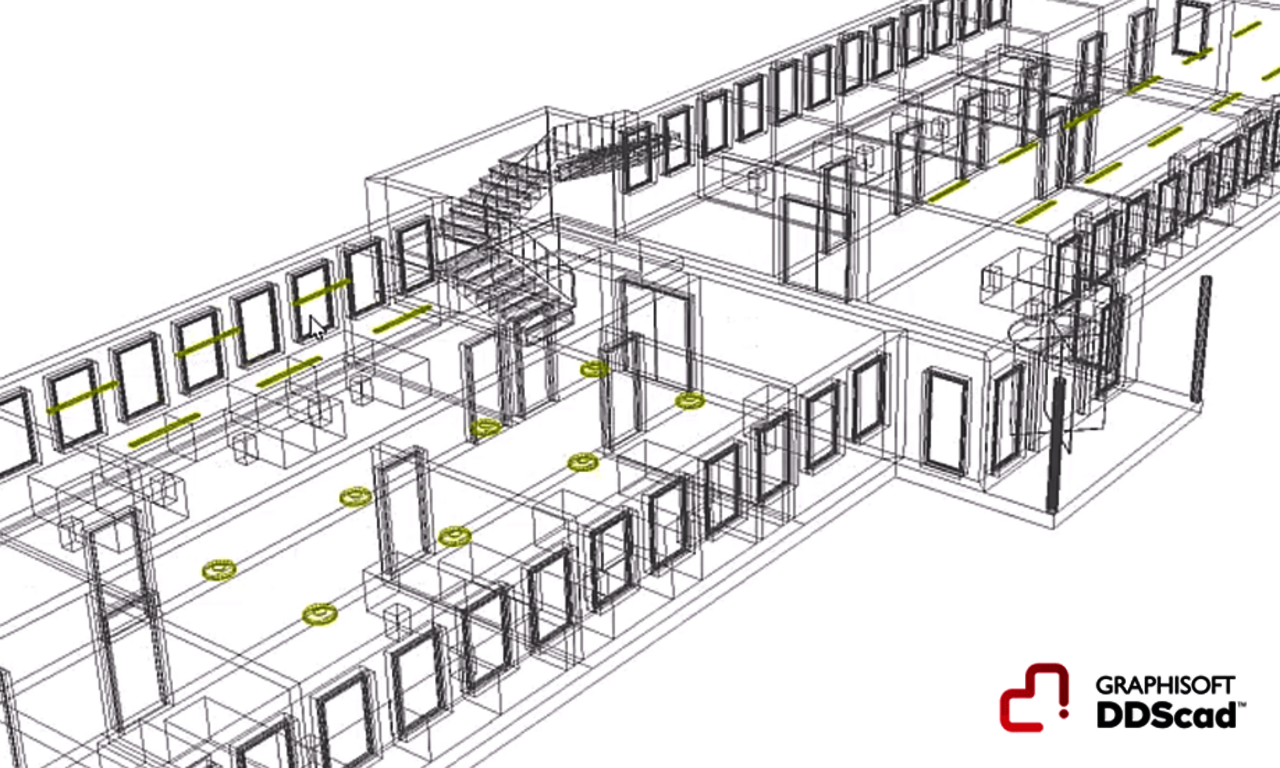

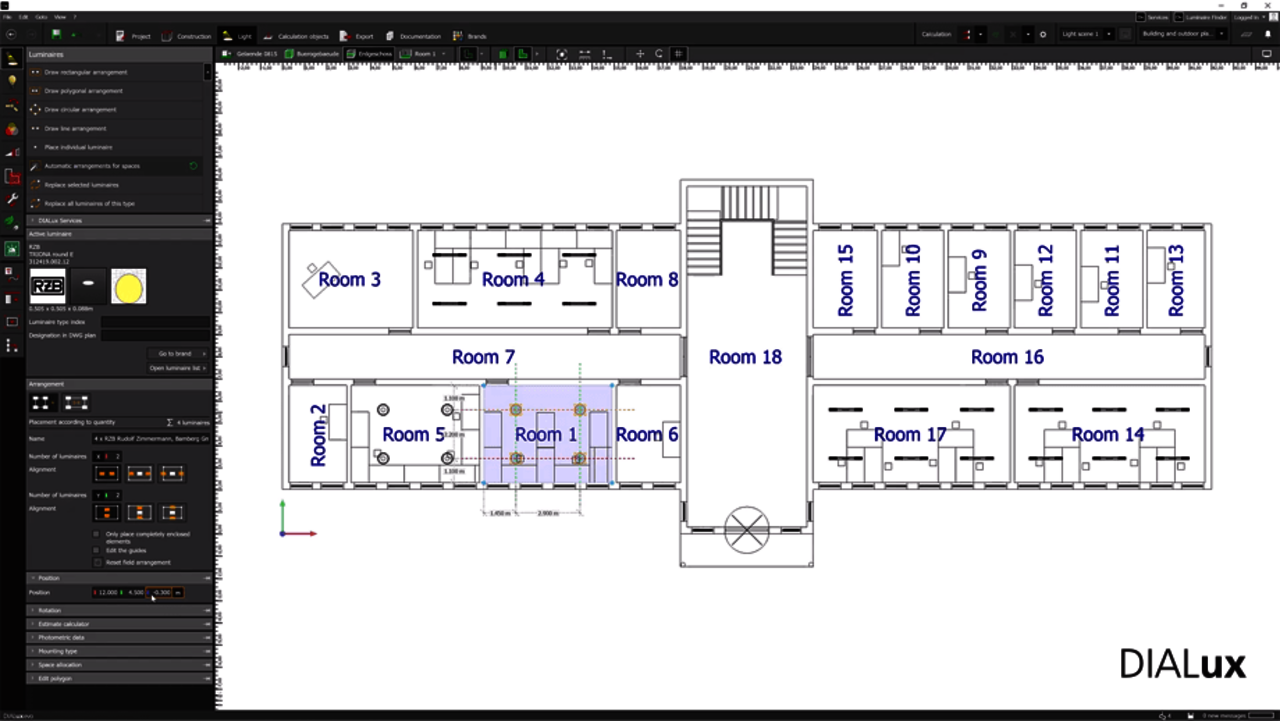

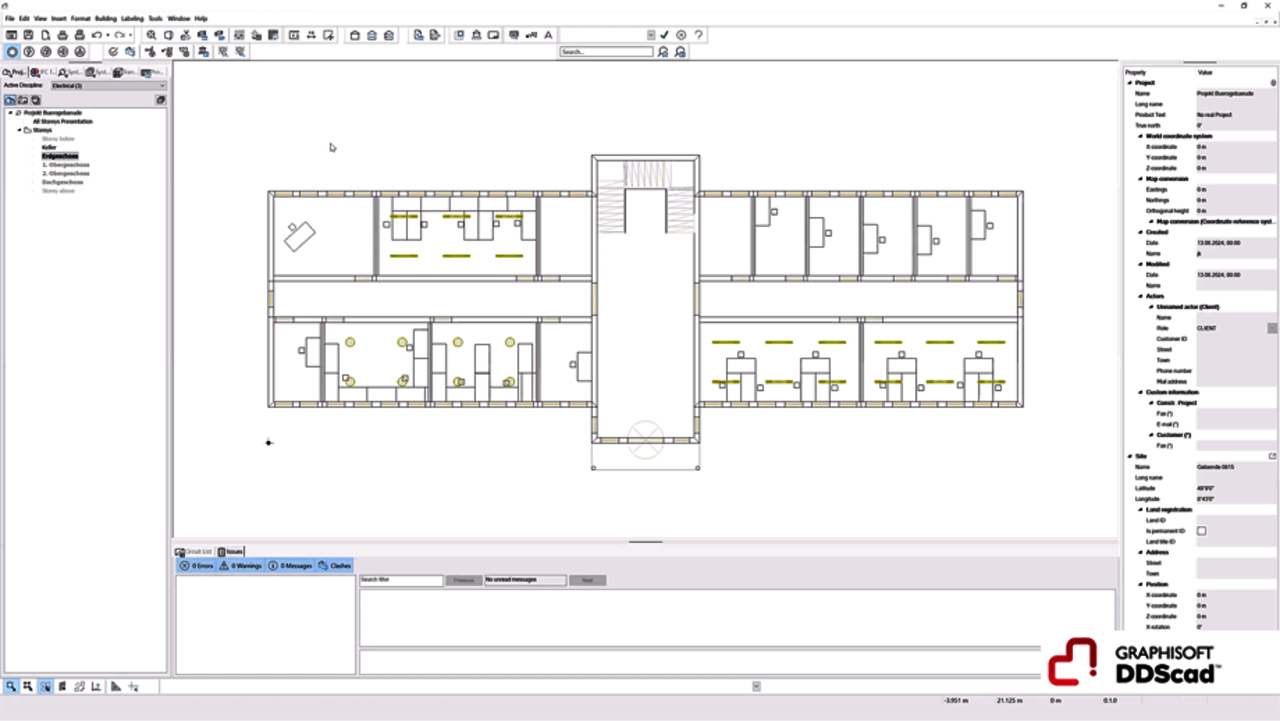

The integration of DIALux and DDScad enables real-time data exchange when both programs are installed on the same workstation. DIALux can be launched directly from DDScad and use the existing building model as the basis for the lighting design. The lighting installation planned in DIALux is then exported live to DDScad as an IFC partial model and changes are automatically synchronized.

To use the new interface, you need an installation of DIALux evo 13 and the latest version of Graphisoft DDScad, which will be available shortly.

Release of the Interface for Software Manufacturers

With the release of DIALux evo 13, we are making the technical specifications of the interface freely available. The data exchange is based on Open BIM and the IFC standard. This allows other software manufacturers to use this interface and seamlessly integrate DIALux into their own BIM/AEC programs.
